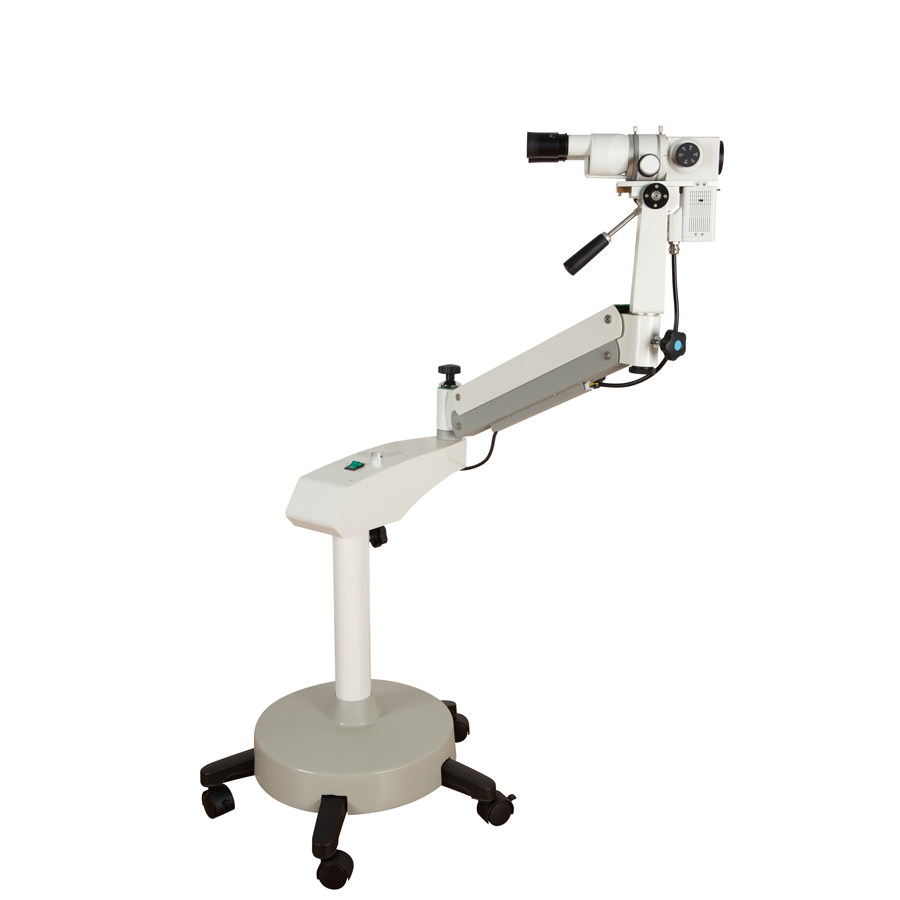

Colposcope AC-4601 - optical system and digital data transmission system

Parameters:

MICROSCOPE

• Binoculars Straight f’=160 mm
• Objective f’=300 mm
• Eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
• Diopter adjustment -5D to + 5D
• Magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
• Total magnifications 2.8x, 4x, 7x, 11.5x, 17x
• Visual field 80 mm to 12.5 mm
• Interpupillary distance 55mm to 75 mm
• Focusing Macro- with stand movement; Micro-range of 40 mm with
• manual adjustment of rack and pinion
• Working distance 295 mm

ILLUMINATION

• Type Coaxial illumination
• Cold light source Build-in LED bulb, 30W
• Illumination control continuous adjustment
• Field of illumination 80 mm
• Power supply AC 110V-220V 100W
• Light intensity 45,000 LUX
• Filter Green

COLUMN AND BASE

• Type Floor type
• Rotation angle 360 degree
• Elevation stroke 170 mm
• Height from objective to floor 1000 mm to 1170 mm
• Base size 600mm
• Weight 16 kgs

ACCESSORIES

• Binoculars 45 degree inclined binoculars f’=125mm
• Objective f’=250 mm,350mm, 400 mm
• Integrated B/S and A/D dismountable, f’=65mm
• CCD Camera
