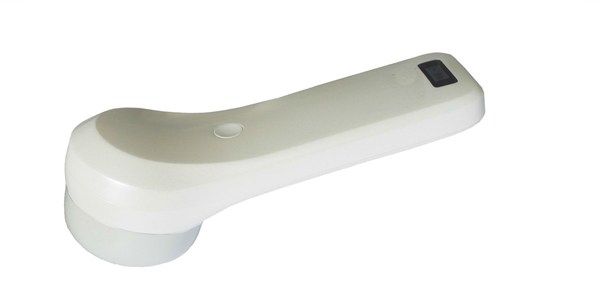

Wireless ultrasound volume transducer UProbe-V -  a wireless array probe scanner. This wireless probe scanner with integrated ultrasound circuit boards inside, can wireless connect to the PC Tablet, Smartphone that after installed ultrasound software, then realize the functions of a ultrasound scanner. It is so small and smart, convenient for carry and operation.

Application: urology, urine volume measurement

Specification:

• Scan mode: electronic array
• Radius: 60 mm
• 128 elements, 16 channel
• Display mode: B
• Frequency：3.5 MHz
• Depth: 100 mm
• Measure: urine volume, automatically
• Measuring range: 10 – 2000 ml
• Battery last: work on more than 200 patients
• Dimension: 180mm×60mm×60mm
• Weight: 420 gram
• Wi-Fi type: 802.11g/20MHz/2.4G
• Work OS: Apple iOS and Android
• Image frame rate: 12f/s
